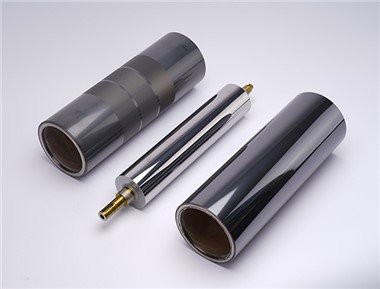

Keramické aniloxové valčeky

Povrch tŕňa valca z liatej ocele, hliníka alebo uhlíkových vlákien je pokrytá keramickou vrstvou. Po dokončení opracovania bude povrch valca gravírovaný vrstvou bunkovej siete laserom podľa jemnosti tlače, hrúbky atramentu atď.

Zaslať požiadavku

Popis

Predstavenie výrobku

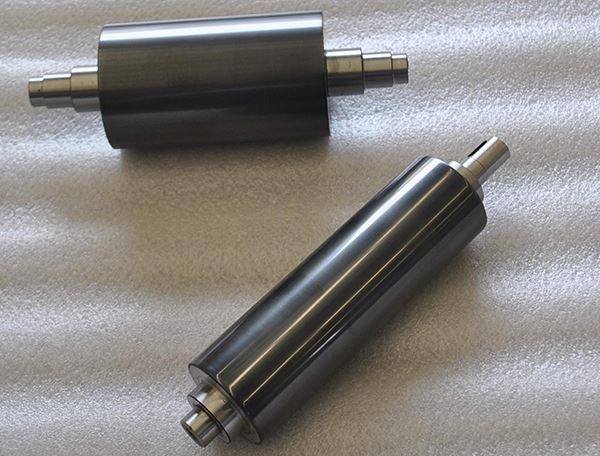

The surface of cast steel, aluminum, or carbon fiber roll mandrel is coated ceramics layer. After finish machining, the roll surface will be engraved a layer of cell net by laser according to printing fineness, the thickness of ink and so on. Ceramic roll is widely used in printing, plastic, coatings , optics, semiconductor and other fields. Ceramic Anilox Rollers have capillary pores and is hydrophilic, making the ink layer more uniform and fine, which can significantly improve the quality of the print.

Vlastnosti

For some industries where coating is very expensive, although the use of Ceramic Anilox Rollers increases the cost for a while, but in the long run, it seems that the material used will be greatly saved, and the production speed is increased, so the benefits are obvious. It has to be polished surface treatment after laser engraving the mesh, with smooth surface and almost no abrasion to the rubber roller and printing plate.

Výhoda

1. Keramika s vysokou tvrdosťou

2. Hustý povlak

3. Odolnosť proti korózii

4. Presný prenos atramentu

5. Bunkové akupunktúrne body sú dobre definované. Bunkové steny sú hladké. Prenos je vysoký.

6. Jednoduché čistenie.

Špecifikácia

Typ bunky	Quad	Voštinový	tkať	Helix
stupňa	45 stupňov	60 stupňov		45 stupňov alebo 60 stupňov

LPI a BCM

Model	M1	M2	M3	M4	M5	M6	M7	M8	M9	M10	M11	M12	M13	M14	M15	M16	M17	M18	M19
LPC	40	50	60	70	80	100	120	140	160	180	200	220	240	260	280	320	400	470	550
LPI	100	120	150	180	200	250	300	350	400	450	500	550	600	650	700	800	1000	1200	1400
BCM	20	16	13	10	9	8	6	6	5	5	4	4	3	3	3	2.5	2	1.5	1
